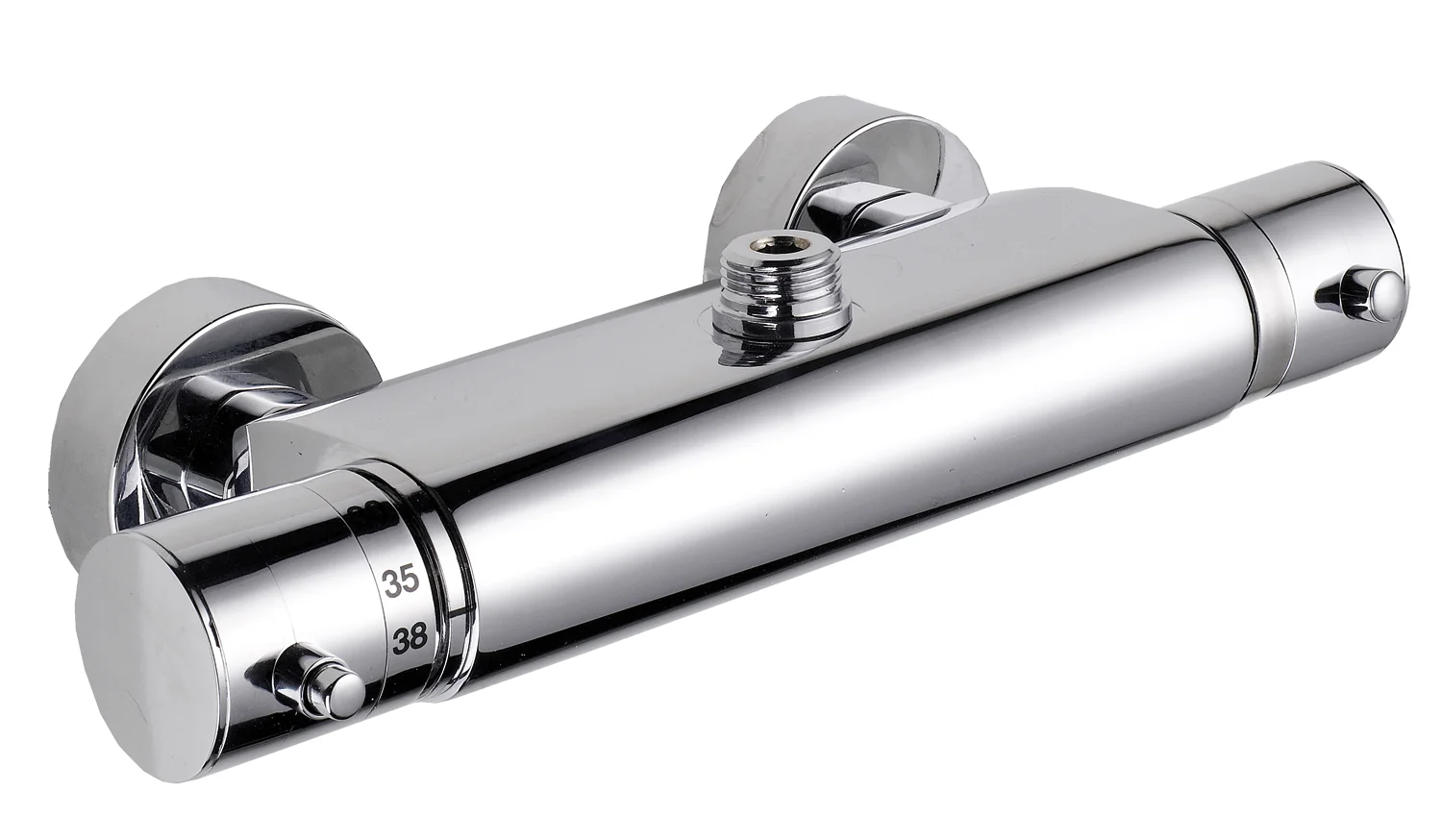

Esterno doccia termostatico corpo freddo
A PARETE PER DOCCIA
Cartuccia intercambiabile con filtri.
Valvole di ritegno sulle entrate.
Manopole in ABS.
Finitura standard: cromo.
Caratteristiche
Corpo in ottone fuso, con cartuccia termostatica intercambiabile e pulsante di blocco temperatura a 38°C. Uscita superiore da 3/4” per colonna doccia. Ingressi ¾” G F con eccentrico ¾” GF- ½” GM e rosone cromato; interasse come da norma UNI EN 1111. La temperatura del corpo non supera la temperatura dell’acqua miscelata evitando così pericolose scottature. Dotato di valvole di non ritorno. Manopole in plastica.
ALTRE CARATTERISTICHE:
- Materiale: Ottone
Collezione
The thermostatic mixer sets the water temperature at a pre-fixed value, mixing automatically hot and cold water, independently from the variations of pressure and temperature of the water supplying the tap. It allows therefore the maximum comfort, a relevant water saving and avoids the risk of accidental scalding
--
Small mix details
Description of the product: SMALL MIX is an external thermostatic mixer for showers. Its reduced dimensions make it suitable for small shower box (70x70 cm.) like the ones that can be found in hotels, caravans and boats. It is made of forged brass, an unusual process for tap production, grants great safety and manufacturing quality. The body has a chrome-plated surface with a minimal design. The thermostatic mixer, properly regulating the quantity of cold and hot water, allows the supply of water at constant
temperature, offering high comfort and avoiding the risk of
accidental scaldings with an important saving in hot water. It is
supplied with brass connections for the fixing to the drilled panel
and it is complete with check valves and filters.
Materials: Body: UNI EN 12165 CW 617N stamped brass - polished and chrome-plated. Shutter and internal parts: UNI EN 12164 CW617N brass - Springs: Stainless steel AISI 302 - Sealing material: NBR. - Elementi ditenuta: NBR.
Sensor: thermo-sensitive wax element. - Handles: Chrome-plated ABS - thermostatic handle with 38°C stop
Technical Characteristics: Maximum pressure (static): 1.000 kPa (10 bar) - Dynamic operating pressure: 100 ÷ 500 kPa (1÷ 5 bar). Maximum inlet temperature: 85°C - Range: 20 ÷ 50 °C - Mixed water temperature exactness: ± 2°C - Handle: thermostatic - with block at 38°C
Water inlet connections: 1/2”M connections (threaded) complete with filters and check valves - Mixed water outlet connections: 1/2”M - UNI ISO 228 threading.
Installazione & Manutenzione
INSTALLAZIONE:
Fissare a parete.
Collegare gli ingressi dell'acqua.
Verificare la tenuta dei collegamenti.
Informazioni per la sicurezza: il montaggio del dispositivo deve essere effettuato da un installatore professionista competente e qualificato.
Il produttore non è responsabile dell'installazione del prodotto. Mantenere il prodotto adeguatamente pulito.
Certificazioni
Certificazione TUV di sistema UNI EN ISO 9001.
