3/4″ thermostatic cartridge
CARTRIDGE

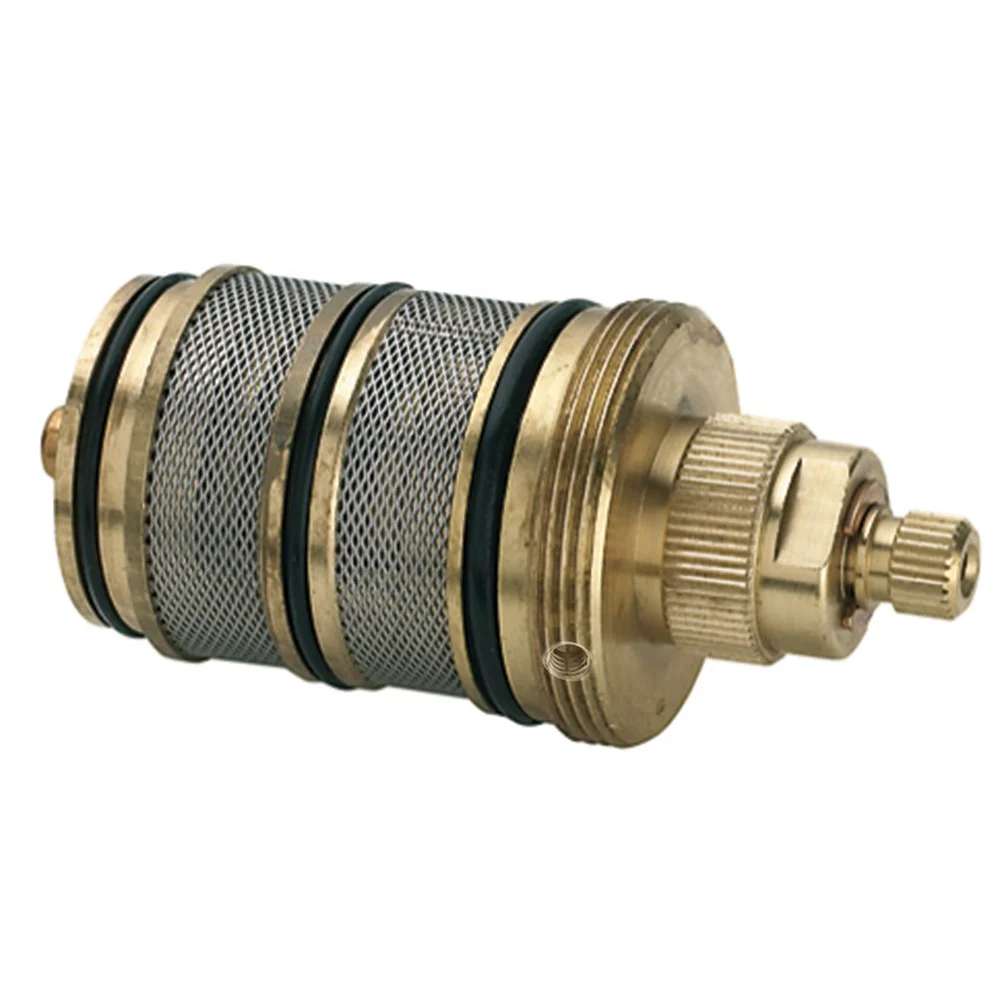

3/4" thermostatic cartridge
Features
¾” thermostatic cartridge with threaded head fixing. Adjusts the water temperature to the desired value, regardless of pressure fluctuations. In case of cold water failure, it reduces the hot water flow to minimize the risk of scalding.
; It is possible to disassemble and reassemble it without removing the knob, so in case of disassembly for filter cleaning it is not necessary to redo the calibration.
OTHER FEATURES:
- Material: Brass
Collection
The Thermostatic cartridge is a removable device that
includes the complete functional part of the thermostatic
mixer. Thanks to a security system, it is possibile to
increase the temperature over the 38 °C only pushing a
security button. The cartridge THERMOMAT is fixed inside
the thermostatic mixer body thanks to a radial screw, that
define also the correct operation, or it is screwed on the
body of the mixer. It can be used for shower, bathtub,
washbasin and bidet mixers. The thermostatic cartrdige
is available also in a teflon coated version: this special
treatment prevents the possibility of development of
limescale deposit in the cartridge, preserving in this way
the durability of the device. This version is suggested in
case of water with an high level of limescale.
Installation & Maintenance
INSTALLATION:
Fix in the appropriate seat in the body of the tap.
Check the hydraulic seal
Certifications
TUV UNI EN ISO 9001 system certification.
