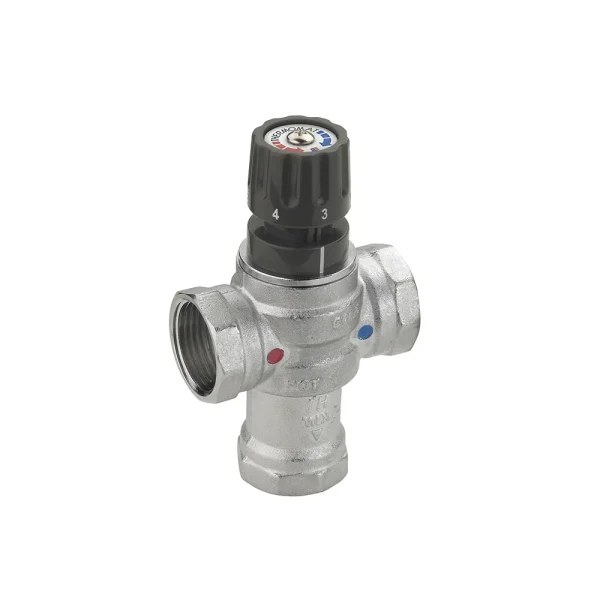

Thermostatic mixer
With nozzles
Features
It regulates the water temperature to a pre-set value by mixing hot and cold water even in the event of pressure variations. Recommended for hot water distribution systems supplied by boilers of all types; in case of cold water shortage, it limits the flow of hot water, thereby reducing the risk of accidental scalding.
; The knob can be locked using the appropriate dowel on the cap, to avoid accidental tampering. Max inlet T: 85 °C. With 3/4" M threaded tails and non-return valves on the inlets. Calibration reference: Tc=15 °C, Th=65 °C, P=3 bar, Q= 8 l/min, Knob position 3 --> T=43 °C
OTHER FEATURES:
- Material: Brass
Collection
It regulates to a pre-fixed value the termperature of the
water mixing automatically hot and cold water. It allows
the maximum comfort and to save water and energy; it
avoids the risk of accidental burns It is suggested in case
of systems of distribution of hot water. Produced by every
kind of boilers or in bathrooms of private houses or public
spaces. The mixer is complete with connections, with nut
and shank and check valve.
Installation & Maintenance
INSTALLATION:
Connect to the hydraulic system respecting the connections: Hot water inlet = red mark. Cold water inlet = blue mark. Mixed water outlet = Mix.
Check the hydraulic seal
Certifications
TUV UNI EN ISO 9001 system certification.
