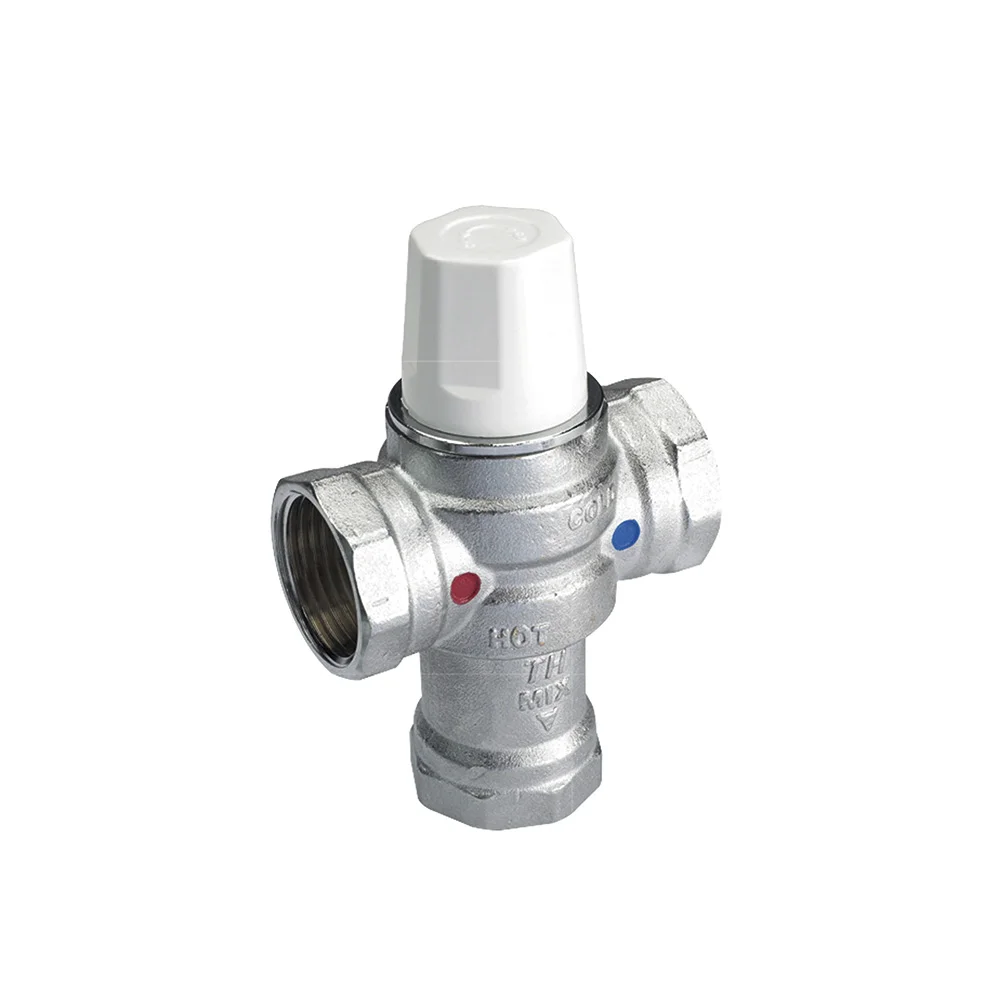

Thermostatic mixer
Fix set
Features
Fixed-setting mixer used where it is necessary to prevent tampering, especially for safety reasons, by unauthorized personnel. Recommended for hot water distribution systems supplied by boilers of all types; in case of cold water shortage, it limits the flow of hot water, thereby reducing the risk of accidental scalding.
; It regulates the water temperature to a pre-set value by mixing hot water from the boiler and cold water returning from the underfloor system, even in the case of pressure variations. Temperature adjustment mechanism protected, for safety reasons, by a removable cap that can only be removed intentionally. The mixer can be calibrated to any value within the 30–65 °C range, according to specific requests. Connections 3/4“ M; Calibration reference: Tc=15 °C, Th=65 °C, P=3 bar, Q= 12 l/min, Standard calibration: 48 °C
OTHER FEATURES:
- Material: Brass
Collection
It regulates to a pre-fixed value the termperature of the
water mixing automatically hot and cold water.It is used
in all those situations in which it is necessary to avoid
for safety reasons, the possibility to tamper settings by
unauthorized persons. Standard calibration is done at
48°C, but the mixer can be calibrated at any other value
included the range of 30÷65 °C, in case of a specific
request. Setting mechanism is protected by a special
tampering cap.
Installation & Maintenance
INSTALLATION:
Connect to the hydraulic system respecting the connections: Hot water inlet = red mark. Cold water inlet = blue mark. Mixed water outlet = Mix.
Check the hydraulic seal
Certifications
TUV UNI EN ISO 9001 system certification.
