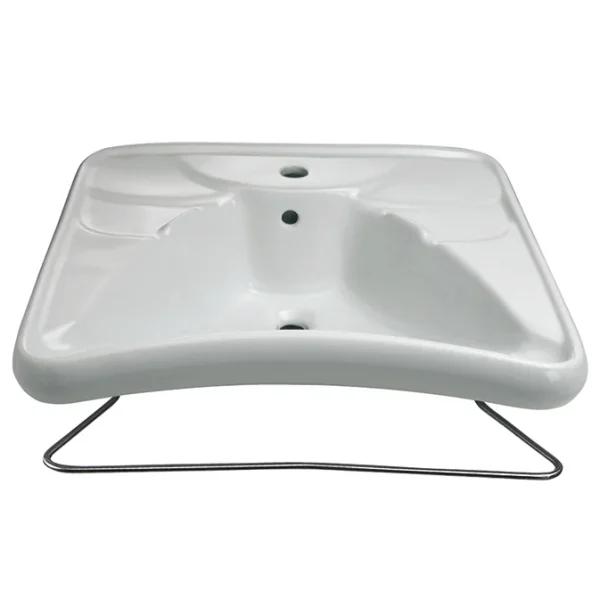

Fixed brackets with cylindrical towel rail for Vital washbasin
FOR SINK

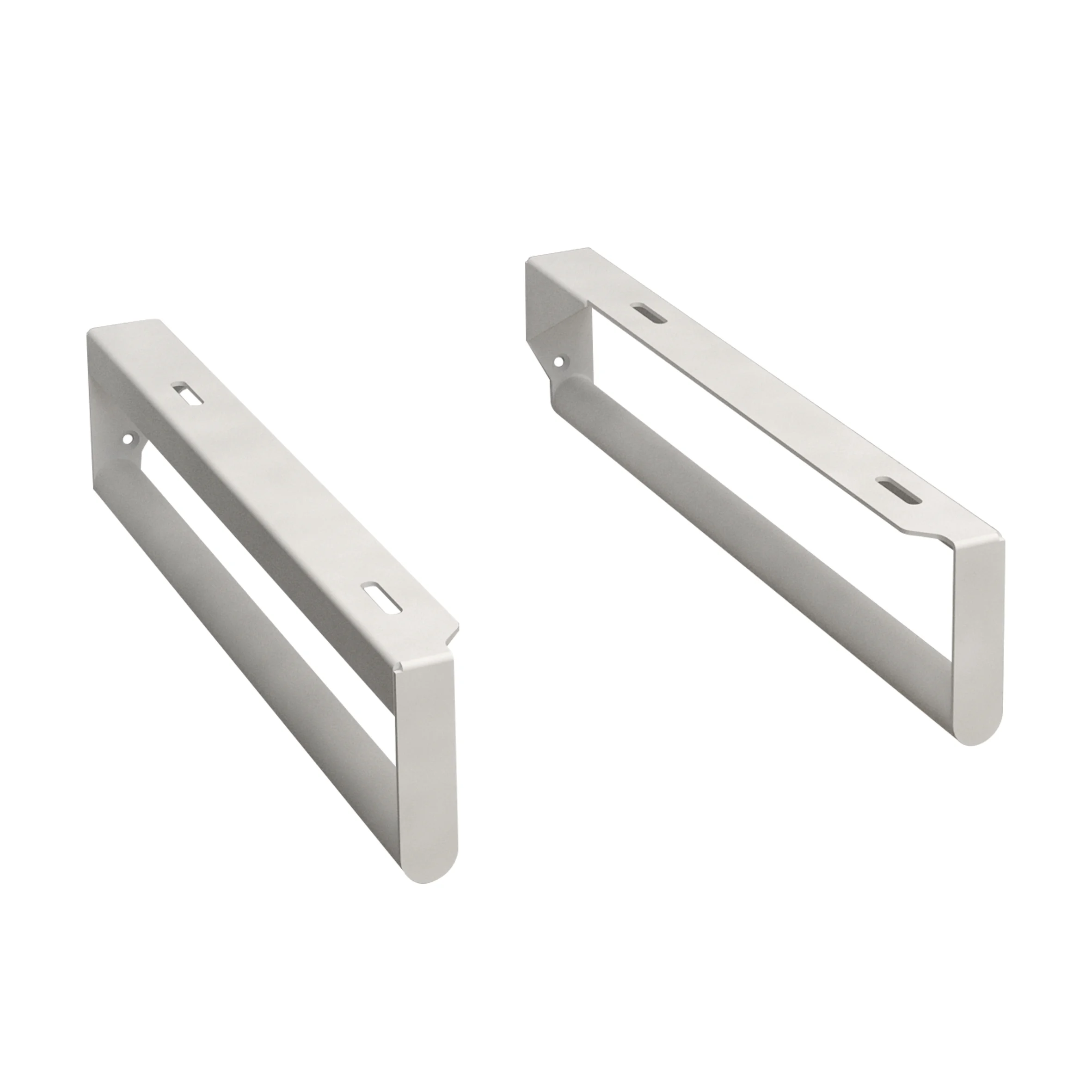

Pair of brackets in galvanized and painted steel.
For wall mounting the sink using 4 holes
Consists of two convenient side towel rails, with D32 tube profile.
Matt finish.
Downloads disponibili:
Features
Rectangular fixed brackets for washbasins cod. SLVTLRT0700XBx and code SLLVTLCS0700XBx. Steel thickness 3 mm. The brackets allow the sink to be fixed to the wall via 4 holes and provide the sink with two convenient side towel holders. Steel thickness 3 mm. Tube profile Ø 32 mm. The brackets allow the sink to be fixed to the wall via 4 holes and provide the sink with two convenient side towel holders. For disabled-compliant installation, adapt the installation dimensions to what is required by law.
OTHER FEATURES:
- Material: Steel
- RAL on request: 7011, 3020, 5010, 1021, 6029
Installation & Maintenance
INSTALLATION:
Wall mounting using 4 anchors.
Plugs not included in the package.
Choose anchors suitable for the type of masonry.
Diametro foro per vite: 8 mm.
MAINTENANCE:
Periodically check the correct fastening of the accessories.
Carry out adequate cleaning with soap and water, do not use aggressive, abrasive, corrosive products, alcohol, acids, acetone, thinner, etc. Don't scratch.
Do not use the product for purposes other than those intended.
Disinfect periodically.
Certifications
TUV UNI EN ISO 9001 system certification.
