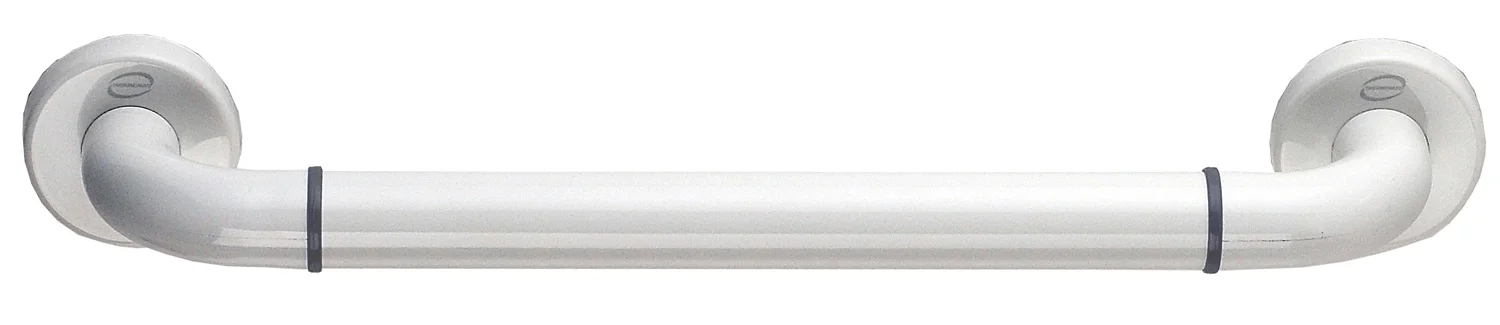

Linear grab bar
Wall mounted
Extruded nylon outer tube Ø35 mm with an internal aluminum core.
Features
Body with aluminum core covered in extruded nylon Ø 35 with added antibacterial additive. Complete with fixing plates and rosettes. The fixing plates electrically isolate the product. Partially assembled device to reduce overall dimensions during transport. Molded parts in nylon Ø 35, with the addition of an antibacterial additive. None of the components contain PVC. There are decorative rings in colored nylon. It is possible to apply the SDA hanging seat; in this case the holding capacity is equal to 120 kg.
OTHER FEATURES:
- RAL on request: 7011, 3020, 5010, 1021, 6029
Length
300 mm mm
Length
450 mm mm
Length
600 mm mm
Length
900 mm mm
Collection
The Nylon grab bars and handrails by Thermomat provide safe and reliable support in any bathroom. Made of PVC-free molded nylon, they come with wall flanges and rosettes, with connections in tropicalized steel and brass bushings.
The products are electrically insulated and treated with Sanitized, an antibacterial coating. They support a load capacity of up to 120 kg and can be custom-colored on request. The series is self-extinguishing according to UL94 (HB and V2) and features grey joint covers for a neat finish.
Installation & Maintenance
INSTALLATION:
Fissaggio a muro tramite n° 6 tasselli.
Plugs not included in the package.
Choose anchors suitable for the type of masonry.
Diametro foro per vite: 6.5 mm.
Safety information: The device must be mounted by a competent and qualified professional installer.
The manufacturer is not responsible for the installation of the product. Periodically check that the wall fixing is solid and stable. Keep the product properly clean.
Keep the batch number shown on the label attached to the product. If the device appears unstable or damaged, it must not be used until it has been inspected and approved by a professional installer.
Certifications
TUV UNI EN ISO 9001 system certification.
Dichiarazione di conformità CE al Regolamento Europeo per i Dispositivi medici 745/2017.
Norme di riferimento: UNI EN 12182.
