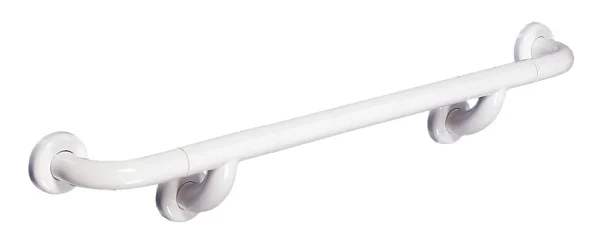

Linear grab bar with cylindrical mounts
Wall mounted
Made of galvanized steel with crossbars and bushing in aluminium. Powder coated.
Painted ABS caps.
Angled cylindrical wall connections.
Features
Made of galvanized structural steel, with crosspiece and bushing in turned aluminum. Pipe diameter 32x1.5 mm. Distance from wall to pipe center: 69.5 mm. 15° upward inclination. Painted ABS caps.
OTHER FEATURES:
- RAL on request: 7011, 3020, 5010, 1021, 6029
Length
300 mm mm
Length
450 mm mm
Length
600 mm mm
Installation & Maintenance
INSTALLATION:
Fissaggio a muro tramite n° 2 tasselli.
Plugs not included in the package.
Choose anchors suitable for the type of masonry.
Diametro foro per vite: 9 mm.
Safety information: The device must be mounted by a competent and qualified professional installer.
The manufacturer is not responsible for the installation of the product. Periodically check that the wall fixing is solid and stable. Keep the product properly clean.
Keep the batch number shown on the label attached to the product. If the device appears unstable or damaged, it must not be used until it has been inspected and approved by a professional installer.
Certifications
TUV UNI EN ISO 9001 system certification. CE declaration of conformity to the European Regulation for Medical Devices 745/2017.
