Reversible angular grab bar with sliding rail
WITH SLIDER

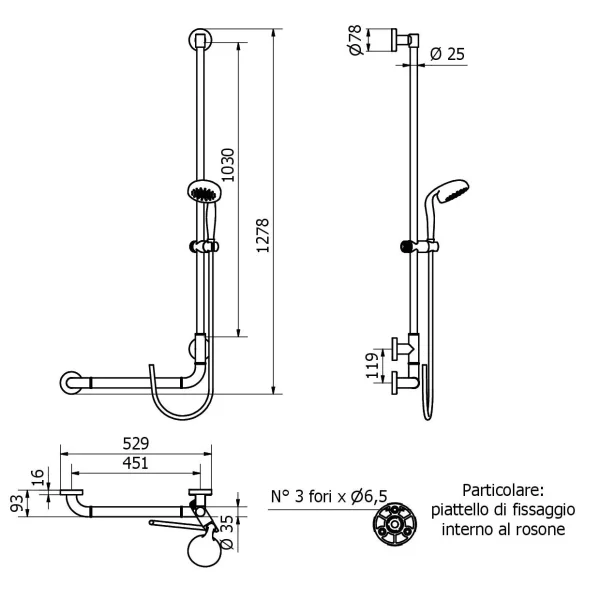

Slide bar, right or left mounting, made of polished stainless steel tube Ø 25 mm
Specification

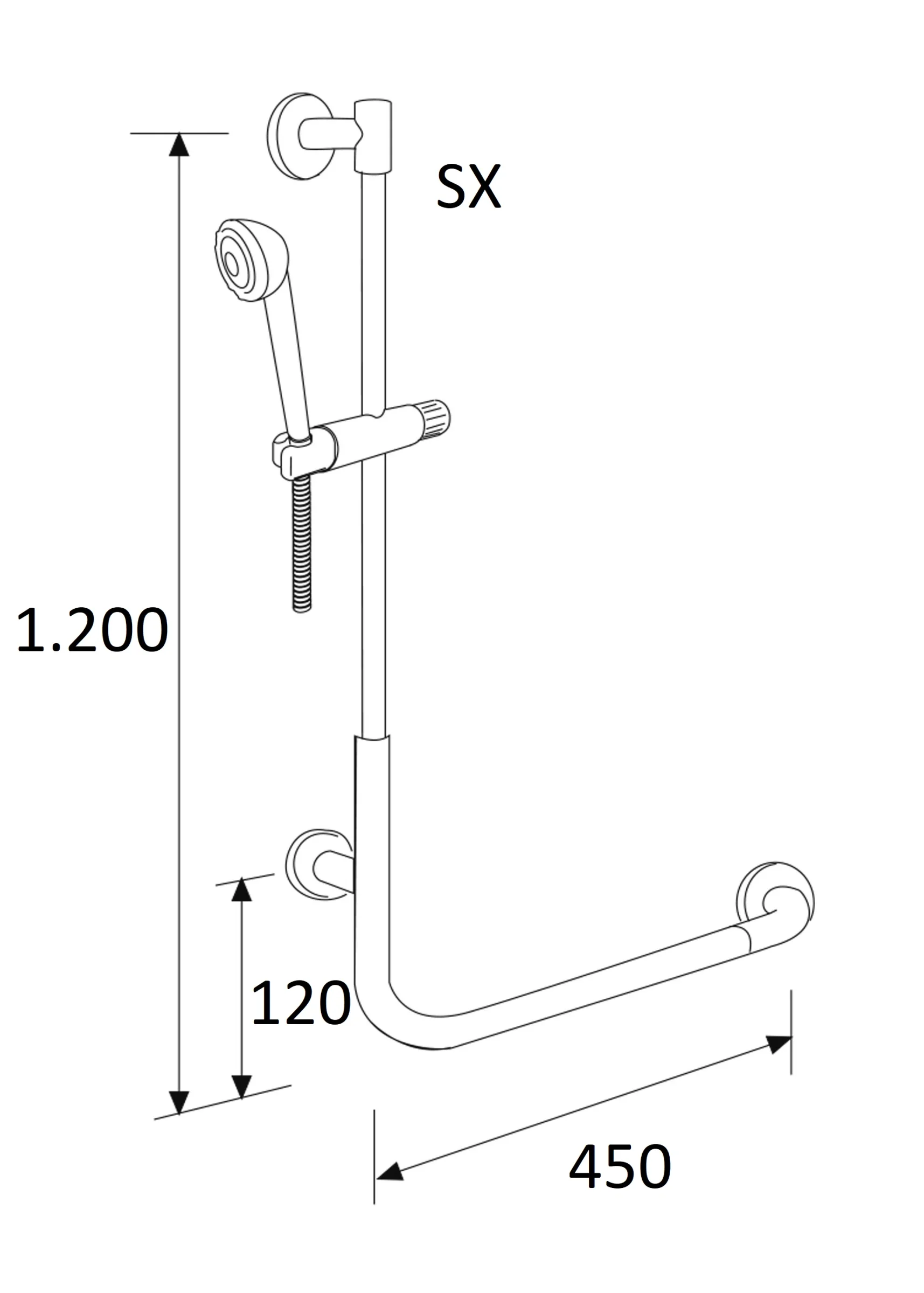

Grab bar, Corner grab bar with left-hand riser rod. , Length 46 x 120 cm., Class I medical device., Aluminum. Nylon., Glossy white colour., Body with aluminum core covered in extruded nylon Ø 35 with added antibacterial additive. Complete with fixing plates and rosettes. Sliding rod in polished stainless steel tube Ø 25 mm., The fixing plates electrically isolate the product., Partially assembled device to reduce overall dimensions during transport., Molded parts in nylon Ø 35, with the addition of an antibacterial additive. None of the components contain PVC., There are decorative rings in colored nylon., It is not possible to apply the SDA hanging seat.
TOLLERANZE GENERALI LUNGHEZZA (mm): 0÷300 ±3, 301÷600 ±4, 601÷2000 ±5., Capacity 120 kg., TUV UNI EN ISO 9001 system certification.
Dichiarazione di conformità CE al Regolamento Europeo per i Dispositivi medici 745/2017.
Norme di riferimento: UNI EN 12182.
Body with aluminum core covered in extruded nylon Ø 35 with added antibacterial additive. Complete with fixing plates and rosettes. Sliding rod in polished stainless steel tube Ø 25 mm. The fixing plates electrically isolate the product. Partially assembled device to reduce overall dimensions during transport. Molded parts in nylon Ø 35, with the addition of an antibacterial additive. None of the components contain PVC. There are decorative rings in colored nylon. It is not possible to apply the SDA hanging seat.
TOLLERANZE GENERALI LUNGHEZZA (mm): 0÷300 ±3, 301÷600 ±4, 601÷2000 ±5.
OTHER FEATURES:
- EAN code: 270-NY-B
- SKU: 270-NY-B
- RAL on request: 7011, 3020, 5010, 1021, 6029
I maniglioni e corrimano della serie Nylon offrono supporto sicuro e affidabile in ogni bagno. Realizzati in nylon stampato privo di PVC, sono completi di piattelli e rosoni per il fissaggio a muro, con collegamenti in acciaio tropicalizzato e boccole in ottone.
I prodotti sono isolati elettricamente e trattati con Sanitized, un rivestimento antibatterico. Garantiscono una portata fino a 120 kg e possono essere realizzati su richiesta in colorazioni personalizzate. La serie è autoestinguente secondo UL94 (HB e V2) e dotata di anellini coprigiunti grigi per un’estetica curata.
Installation & Maintenance
INSTALLATION:
Fissaggio a muro tramite n° 9 tasselli.
Plugs not included in the package.
Choose anchors suitable for the type of masonry.
Diametro foro per vite: 6.5 mm.
Safety information: The device must be mounted by a competent and qualified professional installer.
The manufacturer is not responsible for the installation of the product. Periodically check that the wall fixing is solid and stable. Keep the product properly clean.
Keep the batch number shown on the label attached to the product. If the device appears unstable or damaged, it must not be used until it has been inspected and approved by a professional installer.
TUV UNI EN ISO 9001 system certification.
Dichiarazione di conformità CE al Regolamento Europeo per i Dispositivi medici 745/2017.
Norme di riferimento: UNI EN 12182.
